ValleyLab Force 1C Electrosurgery Unit w/ Foot Pedal - Reconditioned
ValleyLab Force 1C Electrosurgery Unit w/ Foot Pedal - Reconditioned
Regular price
$2,195.00
Regular price
Sale price
$2,195.00

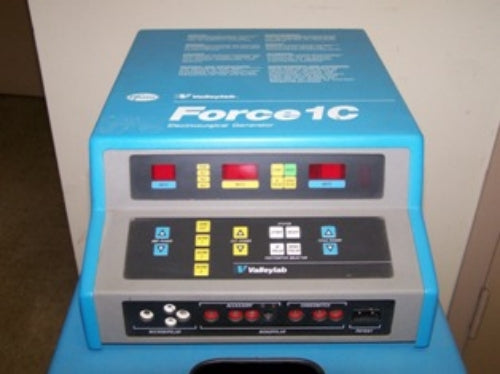

Valleylab Force 1C Electrosurgical Generator w/ Monopolar Foot Switch
OPTIONS:
- Bipolar foot switch and
- Rolling cart.
Standard Accessories Available
- Handpieces
- Grounding Pads
FEATURES:
The Force 1C has a streamlined, compact design perfect for the requirements of outpatient surgery - as well as the power and performance features needed for a full range of general inpatient surgical procedures.
THREE BLENDED CUT MODES provide flexibility with varying degrees of hemostasis in the cut modes.
QUICK SET UP FEATURES reduce the need for readjustment between procedures. Microbipolar and monopolar modes are set independently, and the digital display allows easy confirmation of power levels.
ISOLATED OUTPUT DESIGN directs…
- Height: 6 in. (15 cm)
- Width: 11 in. (28 cm)
- Length: 17 in. (43 cm)
- Weight: 15 lbs. (6.8kg)
OUTPUT WAVEFORMS
- Cut: 516 kHz sinusoid
- Blend 1: 516 kHz sinusoid bursts at 70% duty cycle recurring at 31 kHz
- Blend 2: 516 kHz sinusoid bursts at 45% duty cycle recurring at 31 kHz
- Blend 3: 516 kHz sinusoid bursts at 20% duty cycle recurring at 31 kHz
- Coag: 516 kHz sinusoid bursts with a repetition frequency of 31 kHz
- Microbipolar: 516 kHz sinusoid
Output power changes by less than 5% as the line voltage varies from 85-135 volts
LOW FREQUENCY LEAKAGE (50/60 HZ)
Source current, patient leads, all outputs tied together
- Normal polarity, intact chassis ground < 10 µA
- Normal polarity, ground open < 100 µA
- Reverse polarity, ground open < 100 µA
- Sink current, 135V applied, all inputs < 150 µA
HIGH FREQUENCY LEAKAGE
Less than 150 mA rms
INPUT POWER REQUIREMENST
Operation range is 85 to 135 AC volts. Current is less than 5 ampers in cut and less than 3 amperes in coag.
POWER READOUTS
Agree with actual power into rated load to within ±20% or 5 watts, whichever is greater.
REM SYSTEM
Measurement Frequency: 140 kHz ±20 kHz
Measurement Current: 3 mA maximum
Acceptable Resistance Ranges:
- REM pad --5-135 ohms
- Non-REM pad --less than 20 ohms
COOLING
Convection, no fan
AUDIO VOLUME
The mode indicator tones are adjustable from 45 to 65 dBa
The alarm tones are not adjustable and are set to 65 dBa
Designed to meet UL and CSA specifications.
