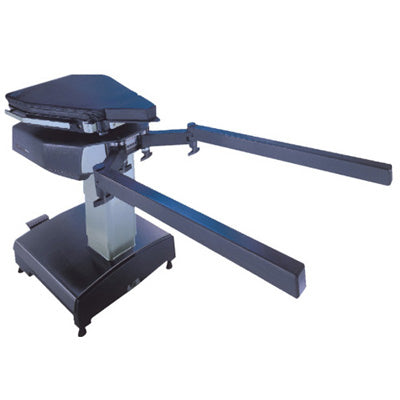

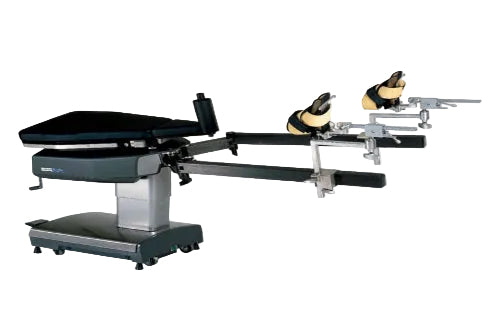

Unmatched for surgical imaging, the OrthoVision orthopedic table includes radiolucent abductor bars for imaging bone without distortion or obstruction. Positions patients for the full spectrum of orthopedic procedures without compromising C-arm imaging. Includes lateral translating tabletop, standard side rails, and swivel casters for easy positioning.
Usage: Orthopedic procedures
Refurbished with 1 year warranty
Call to order Accessories
Ortho 2 and OrthoVision Tabletop Pads
ADDITIONAL SPECIFICATIONS:
- Base is cast iron, ASTM A48 Class 38-c, finished with polyurethane texture paint
- Raise/Lower and floor lock pedals are at head end
- Superstructure side frame and inner cross member are cast aluminum; end frame is cast iron to provide ballast to assist Trendelenburg operation.
- Tabletop assembly is cast aluminum, texture painted. Bearing rods are case hardened stainless-steel.
- Table measures 31 1/4×20 inches
- Abductor bars are 2×3 x 10 inches for inner bar and 2×3 x 40 inches for outer bar. Bars have a satin polish, chrome-plated, finish to prevent corrosion.
