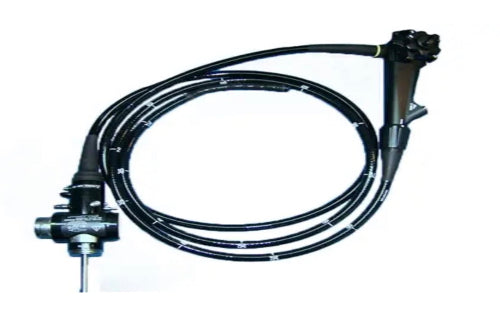

Olympus CF-H180AL Colonoscope - Reconditioned

The EVIS EXERA II CF-H180AL/I colonovideoscope is HDTV-compatible, delivering the highest-possible resolution and image quality. It comes equipped with an impressive suite of advanced functions, including Narrow Band Imaging (NBI) to enhance visualization of mucosal tissue and capillary structures. A Close Focus function produces the same effect as electronic magnification simply by bringing the scope tip close to the observation area. A generous 3.7 mm diameter channel (12.8 mm diameter insertion tube) accommodates a wide range of endoscopic devices while maintaining suction capability.

• Enhance visualization: Narrow Band Imaging™ (NBI) combined with HDTV and Close Focus enhances observation of the mucosa. The extra-wide 170° field of view enables comprehensive observation of the colon and may facilitate a reduction in miss rates, shorter examination times, and enhanced procedural efficiency.
• Easy mucosal cleaning for better observation: An auxiliary water function can be combined with a dedicated flushing pump to enable removal of mucus and clots in the colon at the touch of a switch on the scope or on the footswitch unit.
• Improved handling: The CF-H180AL/I features innoflex™ Variable Stiffness technology, enabling adjustment of the insertion tube flexibility to match the conditions and contours of the colon.

Olympus CF-H180AL Specifications

Physical Specifications

• Channel Width: 3.7
• Working Length: L: 1680, I: 1330
• Field of View: 170
• Depth of Field: 2-100
• Outer Diameter Insertion Tube: 12.8

Angulation

• Max Angulation Up: 180
• Max Angulation Down: 180
• Max Angulation Right:160
• Max Angulation Left: 160
