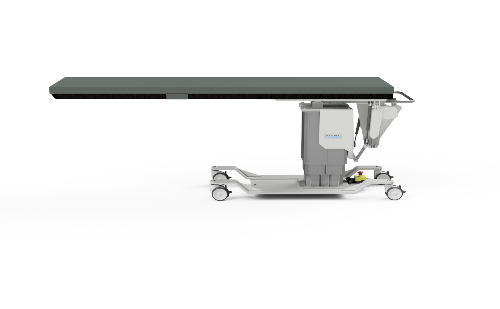

Oakworks CFPM300 3-Motion Carbon Fiber Imaging & Pain Management C-Arm Table

The Oakworks CFPM300 is a premium 3-motion imaging and pain management table designed for fluoroscopy-guided procedures. Its carbon fiber tabletop provides a large metal-free imaging area for exceptional C-arm access while maintaining a 500 lb patient capacity. The powered height adjustment, Trendelenburg tilt, and lateral tilt allow clinicians to position patients quickly and accurately during pain management, orthopedic, vascular, and interventional procedures.

Primary Features

• Carbon fiber radiolucent tabletop
• Three powered motions:
• Height adjustment
• Trendelenburg tilt (+15°/-11°)
• Lateral tilt (±15°)
• 500 lb (227 kg) patient capacity
• Multi-function hand control
• Locking casters
• Large metal-free imaging area for C-arm procedures

Typical Clinical Applications

• Pain management
• Fluoroscopy procedures
• Spine injections
• Orthopedic procedures
• Vascular interventions
• Interventional radiology

Verified Technical Specifications

• Manufacturer: Oakworks
• Model: CFPM300
• Table Type: Imaging & Pain Management Table
• Height Range: 26–43 in (66–109 cm) without pad
• Trendelenburg: +15° / -11°
• Lateral Tilt: ±15°
• Weight Capacity: 500 lb (227 kg)
• Table Weight: Approximately 475 lb (216 kg)
• Power: 120V/60Hz or 230V/50Hz
• Controls: Multi-function hand control
• Safety Listings: FDA Listed, cETLus, CE, CB Certificate
• Warranty (OEM New): 4 years parts, 3 years labor
