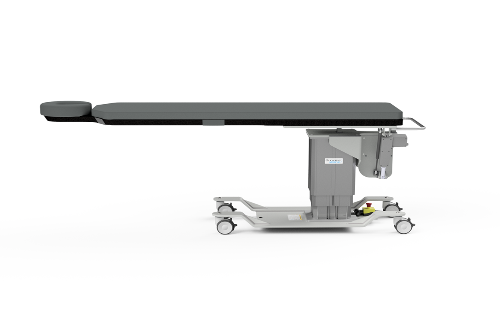

Oakworks CFPM200 2-Motion Carbon Fiber C-Arm Imaging & Pain Management Table

The Oakworks CFPM200 is a premium 2-motion carbon fiber C-arm imaging table designed for pain management, fluoroscopy, and interventional procedures. Featuring a radiolucent carbon fiber tabletop with up to 56 inches of metal-free imaging space, the CFPM200 provides excellent C-arm access while supporting patients up to 500 lbs. Powered height adjustment and powered lateral tilt allow precise patient positioning while maintaining exceptional imaging performance.

Primary Features

• Carbon fiber radiolucent tabletop
• Two powered motions:
• Electric height adjustment
• Electric lateral tilt (±15°)
• Up to 56” metal-free imaging area
• 500 lb patient capacity
• Multi-function hand control
• Locking casters
• Compatible with fluoroscopy and C-arm imaging
• Available with integrated headrest or rectangular tabletop

Typical Clinical Applications

• Pain management
• Spine injections
• Orthopedic procedures
• Interventional radiology
• Vascular procedures
• Fluoroscopy-guided treatments

Verified Technical Specifications

• Manufacturer: Oakworks
• Model: CFPM200
• Table Type: 2-Motion Imaging & Pain Management Table
• Motions:
• Electric Height: 25–43 in. (64–109 cm)
• Electric Lateral Tilt: ±15°
• Patient Capacity: 500 lb (227 kg)
• Carbon Fiber Top:
• Integrated Headrest: 22 × 84 in.
• Rectangular Top: 24 × 80 in.
• Metal-Free Imaging Space: Up to 56 in.
• Product Weight: Approximately 475 lb (216 kg)
• Controls: Hand Control (Foot Control Optional)
• Electrical: 120V/60Hz or 230V/50Hz
• Safety Certifications: FDA Listed, CE, cETLus, CB Certified
• Warranty (OEM New): 4 Years Parts / 3 Years Labor

Why buy from Mission Medical:

• Professionally reconditioned by certified BMETs
• Backed by warranty
• Save significantly vs buying new
• Nationwide shipping available
• In-house delivery in Texas and surrounding states
• Expert biomedical service before and after the sale
• 35+ years serving surgery centers and healthcare facilities nationwide

For pricing, availability, or shipping quote on this unit contact Mission Medical today at (210) 344-6666 | 📍 408 W Nakoma Dr, San Antonio, TX 78216 | Mon–Fri 8am–5pm CST or email us at sales@missionmedical.com.
